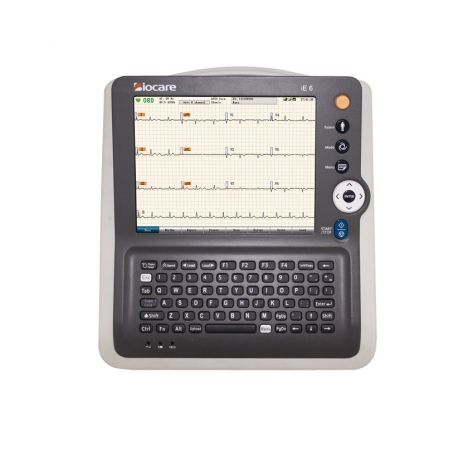

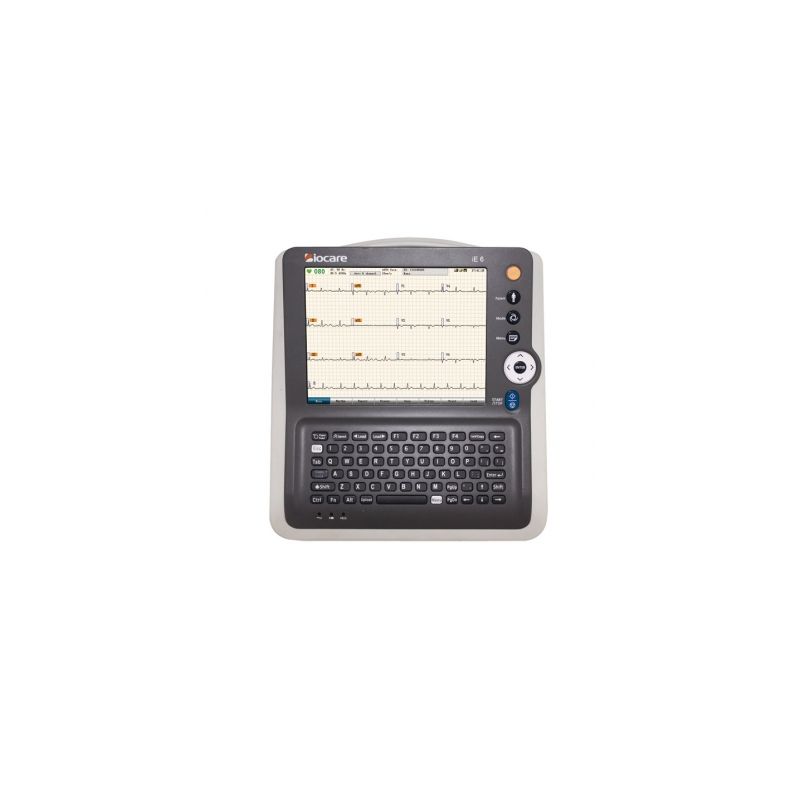

INTERMED INTERPRETATIVE DIGITAL 12-LEAD ELECTROCARDIOGRAPH 6-CHANNEL-IE6

Product ID: 5488

The 6-channel iE6 electrocardiograph has an ergonomic design and an 8 "" LCD touch-screen tilted 15 for easy viewing.

More details

1 899,99 €

Quantity:

+ wishlist

More info

The 6-channel iE6 electrocardiograph has an ergonomic design and an 8 "" LCD touch-screen tilted 15 for easy viewing.

Alphanumeric silicone keyboard for immediate patient data entry.

Operating modes automatic manual rhythm derivation and settable digital filters.

Function menu in Italian.

Trace print of the 12 leads on 112 mm Z-fold thermal paper.

Patient cable with integrated signal acquisition box and possibility of replacing the individual leads

Features:
- display with visualization of the track in real time;
- measurement parameters: heart rate PR interval 'QRS duration' QT / QTC interval 'P / QRS / T axes' RV5 / SV1 amplitude' RV5 + SV1 amplitude;
- possibility to save up to 1500 exams;
- recording format: 3 * 4 '3 * 4 + 1R' 6 * 2 '6 * 2 + 1R' 12 * 1 '3 * 4' 3 * 4 + 1R '6 * 2' 6 * 2 + 1R
- entering the patient's clinical information via keyboard;
- Biocare CardioPro ECG analysis program for adults and children;
- serial peripheral interface: SD Card'USB (for barcode readers and USB pen) and LAN for connection to personal computer using software;
- Biocare 'DICOM' XML 'JPG private ECG format;
- diagnosis based on the Minnesota Code;
- QTC calculation formula: Bazett'Fridercia 'Framingham' Hodges;
- exclusive analysis for children and infants according to the new AHA / ACC / HRS 2007 indications;
- integrated battery with autonomy of more than 3 hours in continuous cycle. Accessories present inside the package
- 10-electrode patient cable with remote control
- 4 peripheral electrodes
- 6 precordial electrodes
- 1 power cable
- 1 grounding cable
